DriveMaster 11 NVMe

▼ DriveMaster 11 NVMe Interface

  Features

  • NVM Express Revision 2.3 compliance.
  • Support ULINK PCIe-SSD Power Adapter Plus (PSPA+) Gen5
  • Support SANITIZE NAMESPACE, GET FEATURE with DWORD 13
  • New Fields in IDENTIFY, GET LOG, GET FEATURE
  • GET/SET FEATURE with FID = 22h, 23h, 24h, 25h
  • GET LOG with LID = 19h, 1Dh, 1Eh, 1Fh, 25h, 7Fh
  • Support TCG Key Per I/O SSC
  • Support IF_SEND/RECEIVE with Security Protocol 3
  • Support Clear Single MEK, Clear All MEK
  • Support Get Nonce
  • Support KMIP Operations: DISCOVER VERSIONS, QUERY, IMPORT
  • Support KMIP Request Message Encoding
  • Support KMIP Request/Response Message Decoding
  • NVMe Controller Initialization with Multiple I/O Command Sets
  • TCG Level0 Discovery Feature Code 0x305 and 0x40A, New Fields in Host/TPer Properties
  • Updated Command Control Panel
  • Support New USB-C and USB/SATA Power Control board (UTPA/USPA)

  Testing Capabilities

  • R&D development and debug
  • NVMe protocol and command validation
  • Regression and data integrity test
  • Power consumption measurement
  • Incoming device QA verification
  • PERST#/PLN#/PLA#/PWDIS#/DUALPortEn# test
  • TCG Opal and Enterprise SSC qualification

  DriveMaster NVMe User Interface

  • DriveMaster standard user interface
  • Dialog bar to issue and display the NVMe commands
  • Detailed NVMe command trace to show the history of issued commands

  Hardware Platform Requirements

  • Windows-based PC with the device under test (DUT) recognized by the OS
  • Installed Microsoft Standard NVM Express Driver or OFA (Open Fabric Alliance) NVMe Storport Miniport Driver
  • ULINK PCIe-SSD Power Adaptor Plus (PSPA+) required for power cycle test

  OS Support

  • Supports Windows 11, Windows 10, Windows Server 2016, 2019 or 2022
  • Above OSes with x64 support

  Command Trace

DriveMasterNVMTrace

  TCG Features

Modified TCG Commands

    • TCG_BLOCK_SID/TCG_BLK_SID bHwRst, [bFrzSP]
    • TCG_NS_ASSIGN_RQS LockTblUID, NSID, [RangeStart], [RangeLen], [ToSUMRange]

TCG Variables

    • TCG_SIIS_DESC
    • TCG_SIIS_VER
    • TCG_SIIS_ZN_KEYCHG
    • TCG_MBR_MULTINS_DESC/TCG_MBR_MNS_DESC
    • TCG_MBR_ALLNS_SPT/TCG_MBR_ANS_SPT
    • TCG_BS_FRZSTATE/TCG_BS_FRZST
    • TCG_BS_FRZSPT
    • TCG_NEWPIN
    • TCG_NS_MINVER
    • TCG_NS_SUMC

User friendly Information on the returned data

  • Level 0 Discovery
      • Shadow MBR for Multiple Namespaces Feature
      • C_PIN Enhancements Feature Set
      • SIIS Feature
      • Block SID with FreezeSP

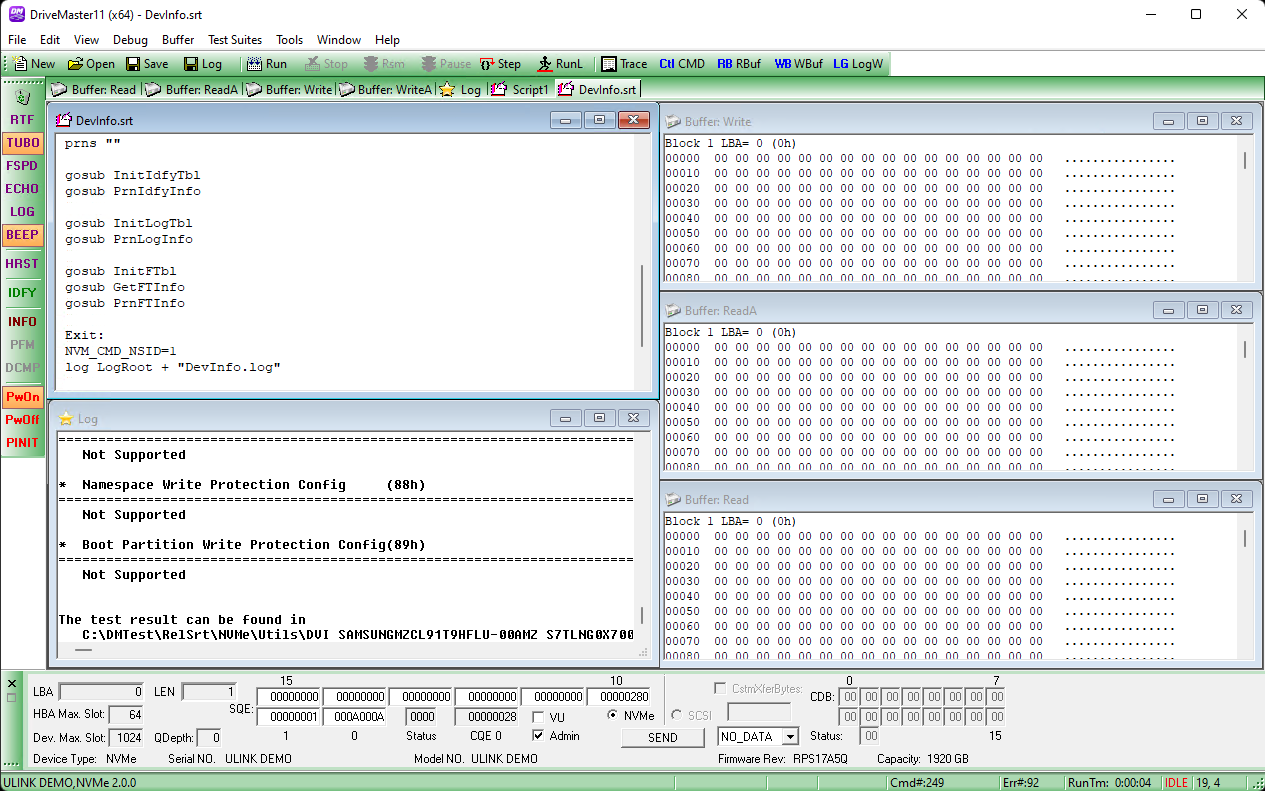

  DriveMaster NVMe Sample Screenshots
