DriveMaster 11 USB
▼ DriveMaster 11 USB Interface
Applications
- General read/write testing
- SCSI Regression test
- TCG related tests
- Supports USB-C/USB/Thunderbolt Interfaces up to USB 3.0 data transfer
Features
- Control using toggle switch and DriveMaster
- Measure both Power Voltage and Power Current on all power sources
- Issue USB/SCSI/TCG commands for test
- SCSI regression and TCG test suites available to hasten development
Recommended Platforms for DM USB
- Any platforms with USB 2.0 to 3.X
- Intel ASUS z890 Hero/z890-E Gaming Wifi with Thunderbolt/USB-C ports
- AMD x870E -E Gaming Wifi USB-C ports
OS and Hardware Support
- Supports Windows 11, Windows 10
- x64 OS Only
- ULINK USB-C/Thunderbolt Power Adaptor (UTPA) required for power cycle test
Dialog Bar
Command Trace
TCG Features
Modified TCG Commands
-
- TCG_BLOCK_SID/TCG_BLK_SID bHwRst, [bFrzSP]
- TCG_NS_ASSIGN_RQS LockTblUID, NSID, [RangeStart], [RangeLen], [ToSUMRange]
TCG Variables
-
- TCG_SIIS_DESC
- TCG_SIIS_VER
- TCG_SIIS_ZN_KEYCHG
- TCG_MBR_MULTINS_DESC/TCG_MBR_MNS_DESC
- TCG_MBR_ALLNS_SPT/TCG_MBR_ANS_SPT
- TCG_BS_FRZSTATE/TCG_BS_FRZST
- TCG_BS_FRZSPT
- TCG_NEWPIN
- TCG_NS_MINVER
- TCG_NS_SUMC
User friendly Information on the returned data
- Level 0 Discovery
-
- Shadow MBR for Multiple Namespaces Feature
- C_PIN Enhancements Feature Set
- SIIS Feature
- Block SID with FreezeSP
-

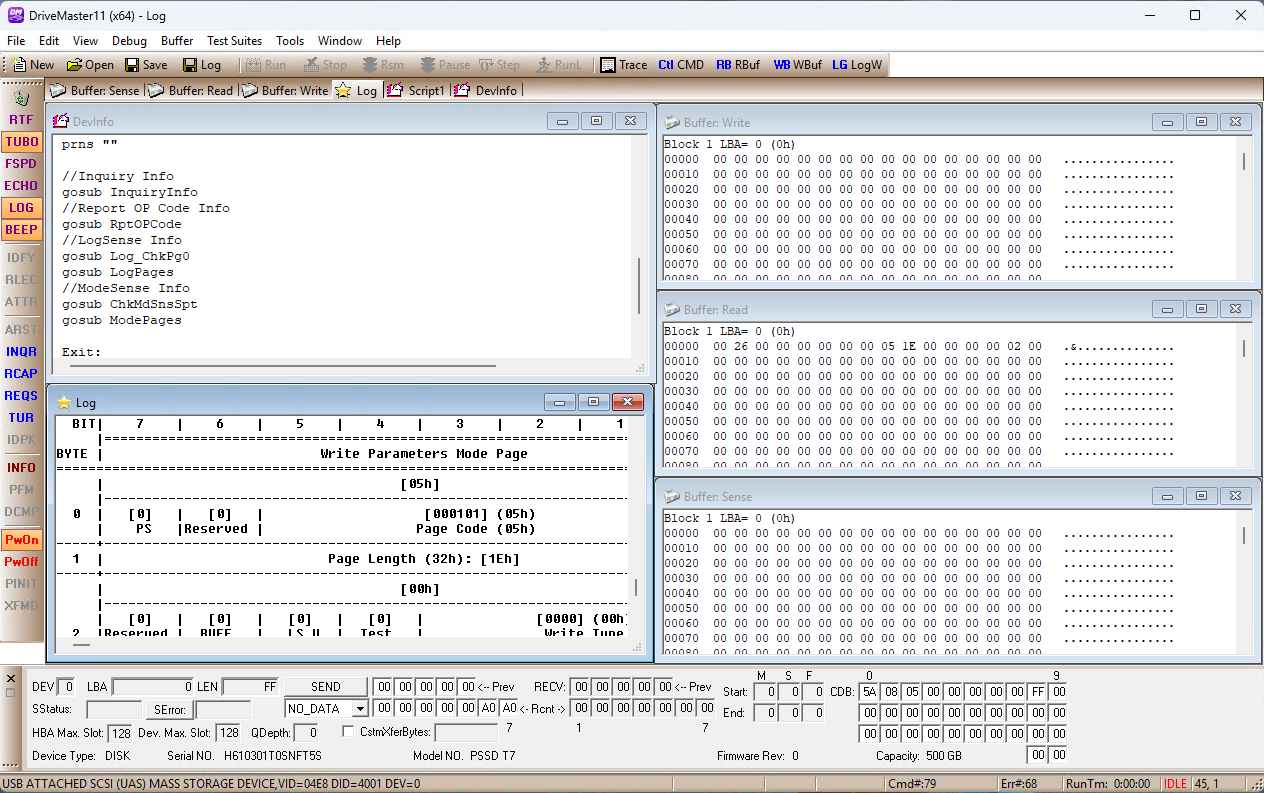

DriveMaster USB Sample Screenshots
