PCIe-SSD Power Adapter Plus Gen4

PCIe-SSD Power Adapter Plus Gen4 Series

ULINK PCIe-SSD Power Adapter Plus Gen4 (PSPA+ Gen4) has been completely redesigned to support PCIe Gen-4. It allows users to control the power supply to the Device Under Test (DUT) without turning off the system power.

PSPA+ Gen4

Features

  • PCIe x4 or PCIe x16 configuration
  • Support for all PCIe voltages: 12v, 3.3v & 3.3v Aux
  • Isolation of data and auxiliary signals from the PCIe system bus
  • Protection of the PCIe power supply through easy-to-replace pluggable fuses
  • PCIe wear-out riser card for high-volume testing
  • LED lights to show board status
  • Two ways to control device power: hardware switch and software control
  • The ability to supply the DUT with power from either an internal or external power mode
  • The ability to supply the DUT with up to 5 Amps
  • Current and voltage measurement
  • Voltage adjustment via external power mode
  • Support for PCIe PERST# (PCIe Reset)

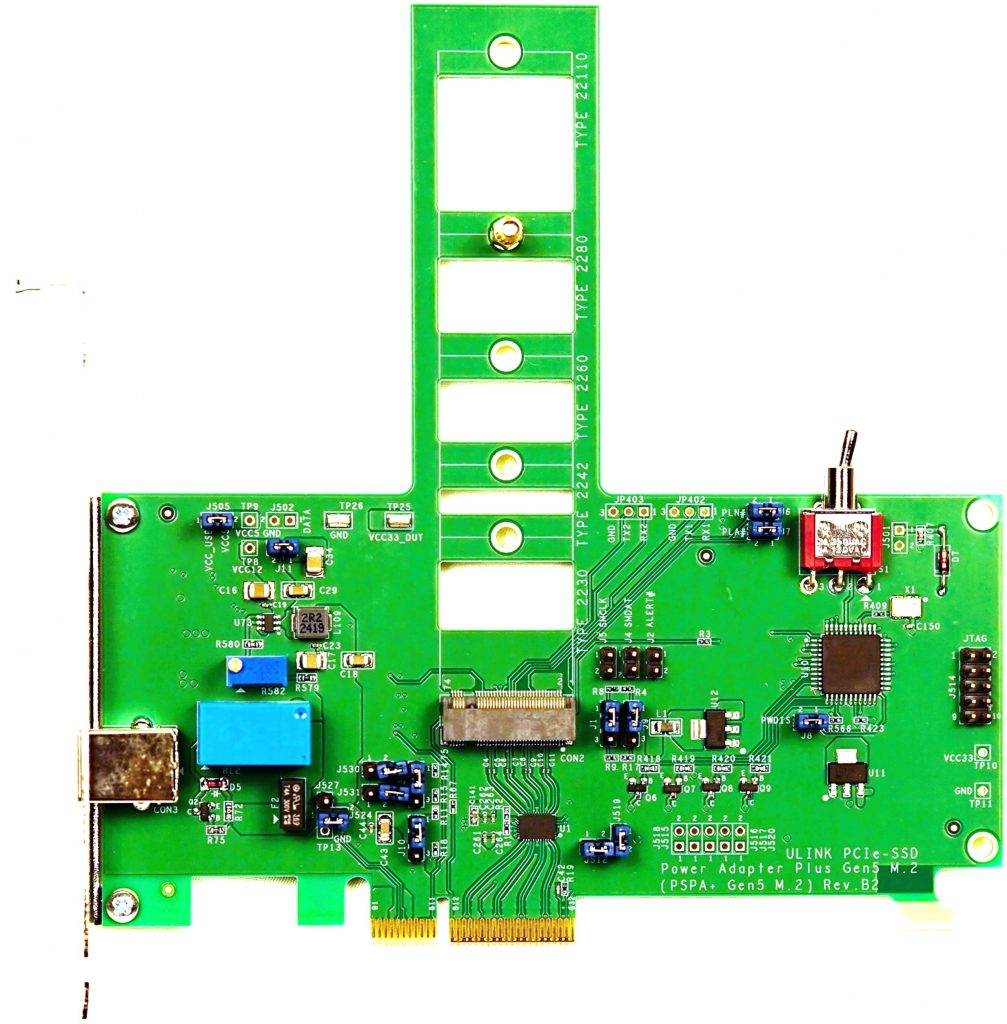

    PSPA+ Gen4 M.2

    Features

    • A standard PCIe M.2 NVMe SSD Interface with the size of 2242/60/80/110
    • Support for PCIe voltages: 3.3v & 3.3v Aux
    • Isolation of data and auxiliary signals from the PCIe system bus
    • Protection of the PCIe power supply through easy-to-replace pluggable fuses
    • LED lights to show board status
    • Two ways to control device power: hardware switch and software control
    • The ability to supply the DUT with up to 5 Amps
    • The ability to supply the DUT with power from either an internal or external power mode
    • Current and voltage measurement
    • Voltage adjustment via external power mode
    • Support for PCIe PERST# (PCIe Reset)
    • Support for PCIe CLKREQ# (Clock Request)
    • Support for PLN# (Power Loss Notification)
    • Support for PLA# (Power Loss Acknowledge)
    • Support for PWDIS# (Power Disable)
    • Support for ALERT#/SMCLK/SMDAT (SMBus)

      Applications

      • Power Cycle Test
      • Protocol Test
      • Regression Test
      • TCG OPAL-Family/Enterprise SSC Test
